43C Standard B2 TAC (5.0″ / 5.5″)

2.0" ID 4.0" Flow-by OD 4.20" Max OD

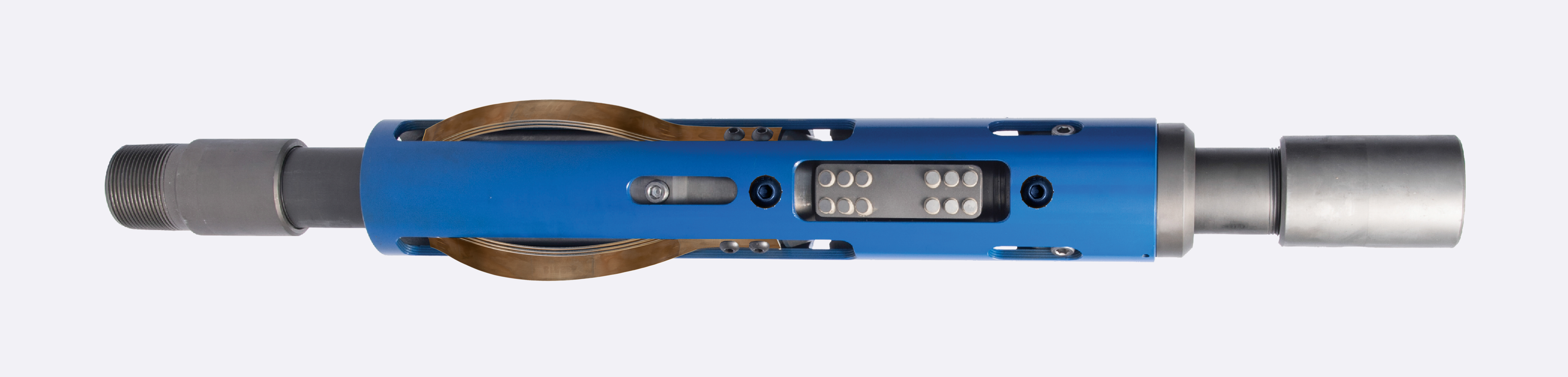

43C standard B2 anchor

Search By Part

Search By Anchor

Parts List

# Part # Image Name Quantity
7 45TS 4.5" Standard Top Sub 2 3/8" 4.5″ Standard Top Sub 2 3/8″
17 55STFD-78 5.5" Slimline Top Flow Deflector (Top Sub), 2 7/8" 5.5″ Slimline Top Flow Deflector (Top Sub), 2 7/8″
2-7/8 connection
50 55SBD-RH 4.5" Standard / 5.5" Slimline Body, Right Hand 4.5″ Standard / 5.5″ Slimline Body, Right Hand
Right Hand
85 55SCP 4.5" Standard / 5.5" Slimline Cap 4.5″ Standard / 5.5″ Slimline Cap
118 55SBN 4.5" Standard / 5.5" Slimline Body Nut 4.5″ Standard / 5.5″ Slimline Body Nut
122 55SBN-RH 4.5" Standard / 5.5" Slimline Body Nut, Right Hand 4.5″ Standard / 5.5″ Slimline Body Nut, Right Hand
Right Hand
125 55BNS 4.5" Standard / 7.0" Slimline Body Nut Screw 4.5″ Standard / 7.0″ Slimline Body Nut Screw
152 55SPP 4.5" Standard / 7.0" Slimline Pipe Plug 4.5″ Standard / 7.0″ Slimline Pipe Plug
185 55SUC 4.5" Standard / 5.5" Slimline Upper Cone 4.5″ Standard / 5.5″ Slimline Upper Cone
186 55SUC-RH 4.5" Standard / 5.5" Slimline Upper Cone, Right Hand 4.5″ Standard / 5.5″ Slimline Upper Cone, Right Hand
Right Hand
206 43CSL-C 43C Standard Slip Carbide 43C Standard Slip Carbide
Carbide Slip
207 45SSP 5.0" Standard Slip Spring 5.0″ Standard Slip Spring
208 43CSL 43C Standard Slip Wicker 43C Standard Slip Wicker
Wicker Slip
215 55SSSP 4.5" Standard / 5.5" Slimline Slip Spring 4.5″ Standard / 5.5″ Slimline Slip Spring
239 43CSPW 43C Slip Protector Washer 43C Slip Protector Washer
239 45DSW 4.5" Standard Drag Spring Star Washer 4.5″ Standard Drag Spring Star Washer
242 43CSPS 43C Slip Protector Screw 43C Slip Protector Screw
242 45DSS 4.5" Standard Drag Spring Screw 4.5″ Standard Drag Spring Screw
269 45LC 4.5" Standard Lower Cone 4.5″ Standard Lower Cone
270 45LC-RH 4.5" Standard Lower Cone, Right Hand 4.5″ Standard Lower Cone, Right Hand
Right Hand
297 45DS 4.5" Standard / 5.5" Slimline Drag Spring (1/16" Thick) 4.5″ Standard / 5.5″ Slimline Drag Spring (1/16″ Thick)
320 43CHO 43C Standard Housing 43C Standard Housing
344 55SLCS 4.5" Standard / 5.5" Slimline Lower Cone Sleeve 4.5″ Standard / 5.5″ Slimline Lower Cone Sleeve
345 55SLCS-RH 4.5" Standard / 5.5" Slimline Lower Cone Sleeve, Right Hand 4.5″ Standard / 5.5″ Slimline Lower Cone Sleeve, Right Hand
Right Hand
355 45BS 4.5" Standard Bottom Sub 2 3/8" 4.5″ Standard Bottom Sub 2 3/8″
356 45BS-78 4.5" Standard Bottom Sub 2 7/8" 4.5″ Standard Bottom Sub 2 7/8″
2-7/8 connection
381 55PIN Shear Pin, Tubing Anchor Catcher (5K Lbs Per Pin, Avg 40K Shear) Shear Pin, Tubing Anchor Catcher (5K Lbs Per Pin, Avg 40K Shear)
